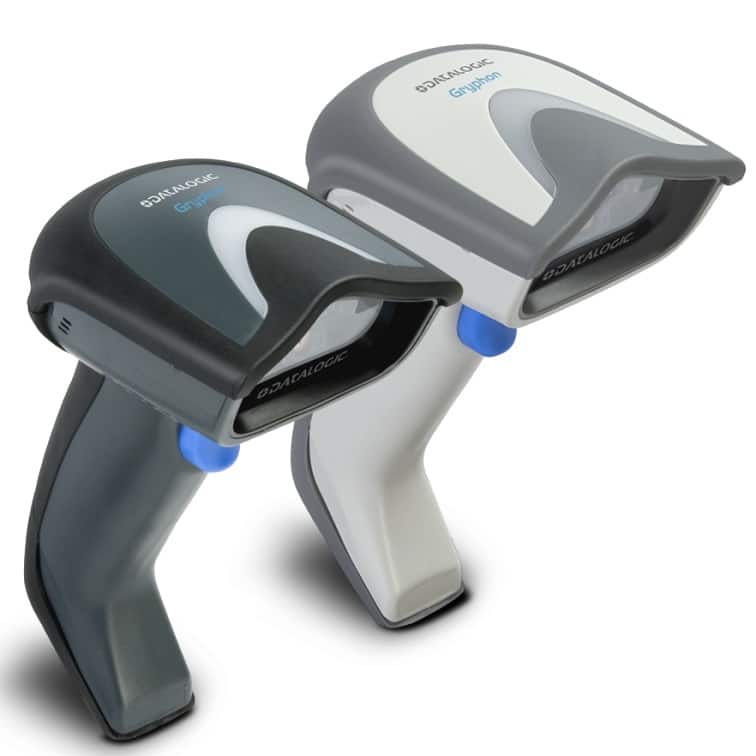

Gryphon I GD4100 / GD4400 / GD4400DPM
Description

GD4100

The Gryphon I linear imaging readers provide advanced reading performance and decoding for a wide variety of applications. The Gryphon GD4100 readers’ ability to capture bar codes from near contact to over 1.0 m / 3.9 ft increases productivity and improves ergonomics for users. A wide scan angle reads very wide codes and renewed decoding capabilities increase throughput on hard-to-read, poor or damaged codes.

The Gryphon I GD4100 readers offer a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232.

Features

  • Extremely snappy reading performance with speeds up to 325 reads/second
  • Extended reading distances including up to 60.0 cm / 23.6 in for 13 mil UPC/EAN 13 labels
  • Wide 42° scan angle for reading wider codes
  • Datalogic’s patented ‘Green Spot’ for good-read feedback
  • Supports GS1 DataBarTM linear codes
  • Remote Host Download lowers service costs and improves operations (GD4110 Model)
  • Multi-interface solutions support most popular interfaces including USB, RS-232, Keyboard Wedge, IBM 46XX and Wand
  • Water and Particulate Sealing Rating: IP52
  • Checkpoint® Systems EAS compatible model
  • USB Certified Kits Available
  • Drop resistance to 1.8 m / 5.9 ft
  • GD4400

    User comfort is maximized with the Gryphon I GD4400-B imager’s steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

    As an All-in-One device, the Gryphon I GD4400-B scanner’s permanent tilting stand is joined with an ergonomic handheld reader for handheld and presentation reading. The All-in-One imager adjusts to any angle to fit individual scanning preferences. The cable connection is positioned well above the counter to avoid damage caused by spills

    Features

  • Motionix™ motion-sensing technology for seamless reading mode transitions
  • Highly visible 4-Dot aimer with center cross for targeted scanning
  • Permanent tilting stand for handheld or presentation omnidirectional reading
  • Tilt Angle: + 30º / - 15º
  • Advanced motion tolerance optics
  • Image capture and document scanning capabilities
  • Reads 1D, 2D and postal codes plus stacked and composite codes
  • Multi-interface options: RS-232 / IBM 46XX / USB or RS-232 / USB / Keyboard Wedge / Wand
  • Datalogic’s patented ‘Green Spot’ for good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment,ensuring maximum productivity and ROI
  • DETAILED INFORMATION
    1D / LINEAR CODES Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
    2D CODES Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
    POSTAL CODES Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
    STACKED CODES EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
    CURRENT Operating (Typical): GD4410-B: < 170 mA @ 5 VDC GD4430-B: < 160 mA @ 5 VDC
    STANDBY/IDLE (TYPICAL) 65 mA @ 5 VDC
    INPUT VOLTAGE GD4410-B: 4.0 - 14.0 VDC; GD4430-B: 4.2 - 5.25 VDC
    INTERFACES GD4410-B: RS-232 / IBM 46XX / USB MultiInterface GD4430-B: RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
    COLORS AVAILABLE Black; White
    DIMENSIONS 19.2 x 8.9 x 11.9 cm / 7.5 x 3.5 x 4.7 in
    WEIGHT 368.5 g / 13.0 oz
    IMAGE CAPTURE Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2
    IMAGER SENSOR Wide VGA: 752 x 480 pixels
    LIGHT SOURCE Aiming: 650 nm VLD
    WARRANTY 5-Year Factory Warranty
