QuickScan Lite QW2100 in UAE

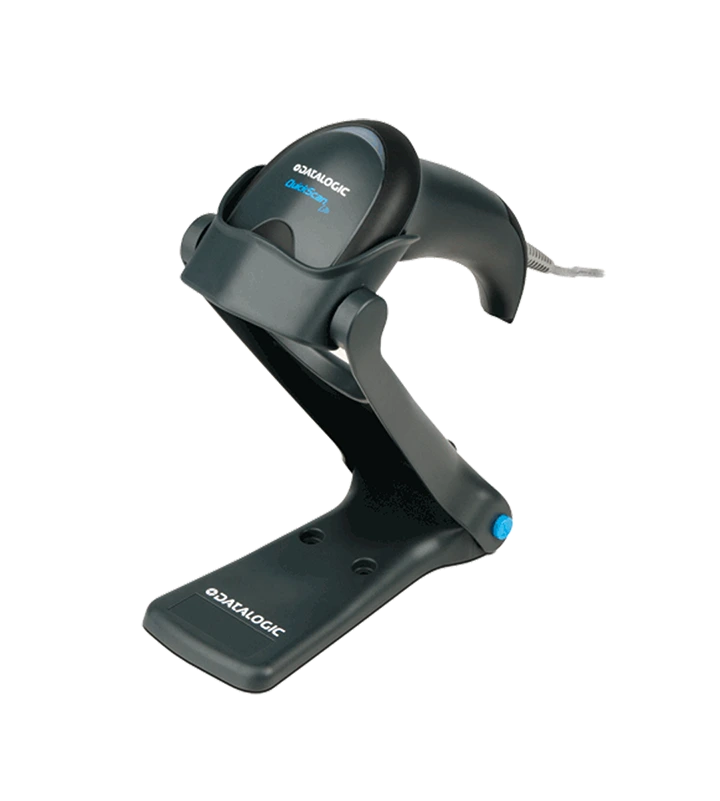

QuickScan Lite QW2100

The QuickScan™ reader series is Datalogic ADC's value line of general purpose handheld data collection products.

The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world.

It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.

Features

  • Wide scan angle
  • Laser-like thinner and extended scan line
  • Two interface options: USB or Keyboard Wedge / RS-232
  • Built with over molded rubber to protect the imager when dropped
  • Compact and multi-position stand
  • Water and Particulate Sealing Rating: IP42
  • Drop Resistance to 1.5 m / 5.0 ft
  • Uses the same cables and power supplies as the current QuickScan products
  • Bulk packaging available (10 scanners per box)
  • USB Certified Kits available
  • Remote Host Download lowers service costs and improves operations (-RM models only

  • SPECIFICATION

    1D / LINEAR CODES Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
    POSTAL CODES China Post
    CURRENT Operating (Typical): <180 mA @ 5 VDC Standby/Idle (Typical): <25 mA @ 5 VDC Sleep Mode: USB Suspend (QW2120): <2 mA @ 5 VDC Low Power Mode (QW2170): <6 mA @ 5 VDC
    INPUT VOLTAGE 5 VDC +/- 0.5 V
    INTERFACES QW2170-BK: RS-232 / Keyboard Wedge QW2120-BK: USB
    COLORS AVAILABLE Black
    DIMENSIONS 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in
    WEIGHT 119.0 g / 4.2 oz
    LIGHT SOURCE Red LED 610-650 nm
    WARRANTY 3-Year Factory Warranty
    ...
